Rib terminology


This page should be read in conjunction with detailed descriptions of particular rib vault styles – all are accessible via the Vault Index page.

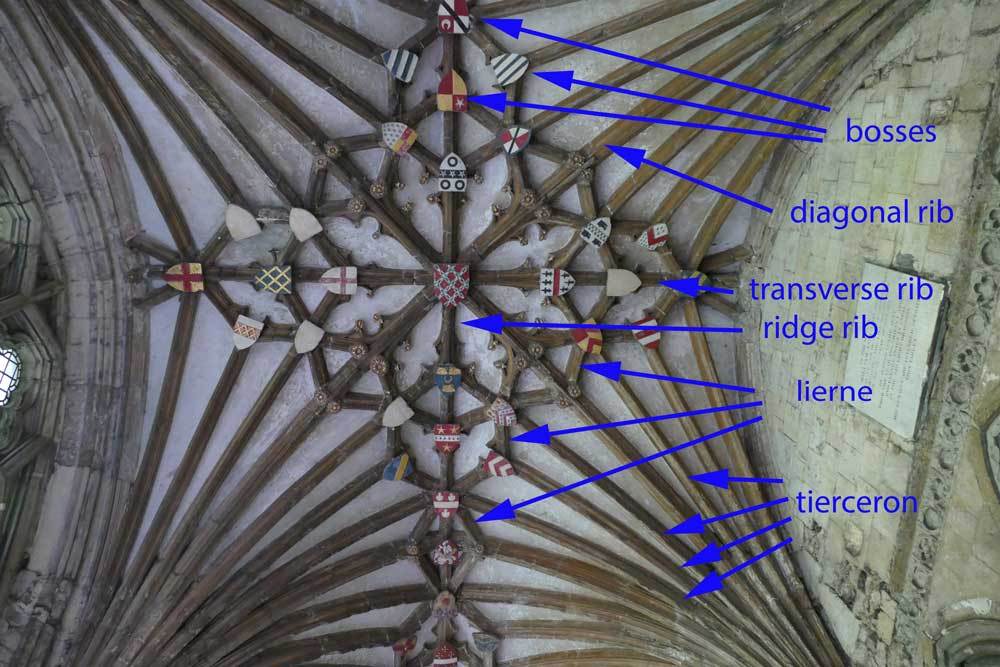

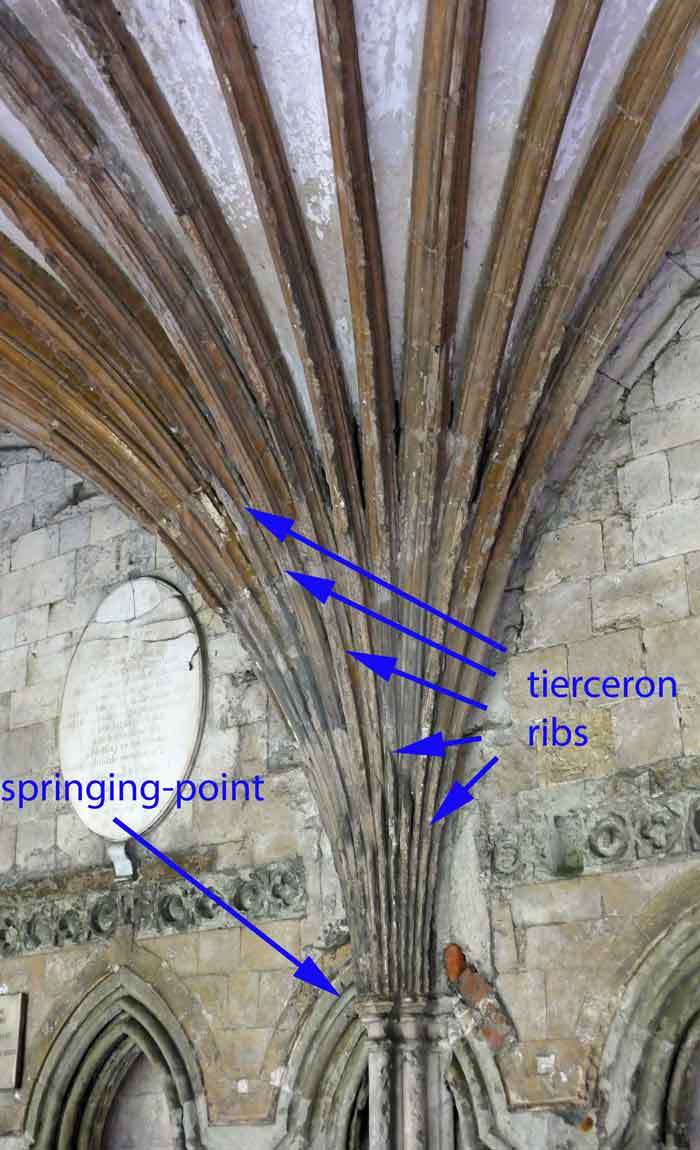

A vault is an arched roof or ceiling.  In a ribbed vault construction, simple groins were replaced by arched ribs of masonry.  The following images provide terms for the different types of rib NB click to enlarge:
